Mica Tape Part Code P-GF404E

Weight 215±10

Thickness 0.15±0.015

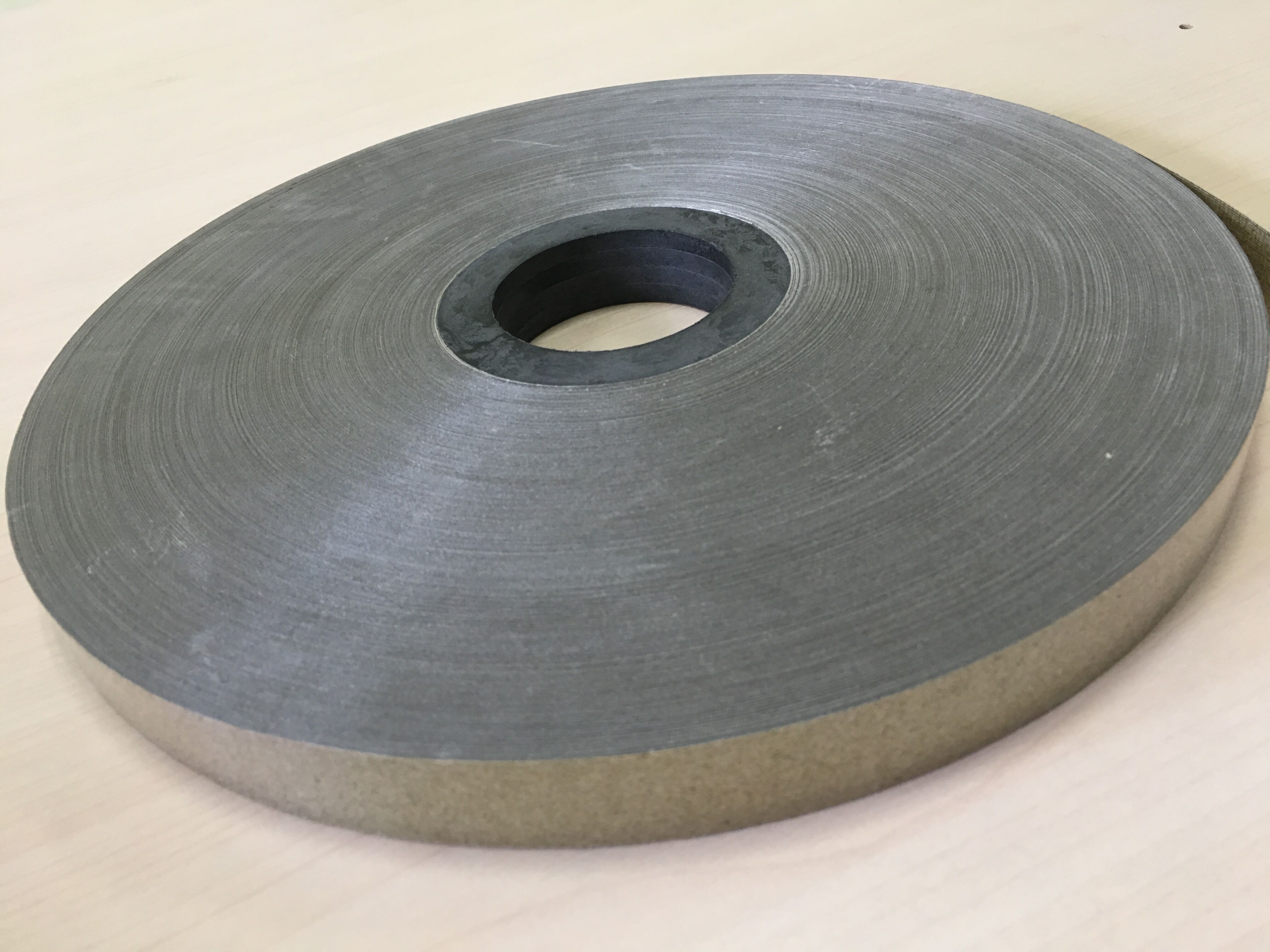

YT MICA 3 In 1 Phlogopite Tape

P-GF404E

Raw material composition

Three in one phlogopite tape have the lowest price and good insulation performance, so they are the main choice. The mica tape is wound onto the copper conductor, which can be divided into single coil winding and tower winding according to different winding machines.

Single coil winding: propose to selecr single coil mica tape.

Spool winding: select spool tray mica tape

According to the original national standard, the fire resistance rating is divided into Class A and Class B.

Class B fire-resistant cable: withstand combustion for at least 90 min under 750 ℃~800 ℃ flame and rated voltage without breakdown (i.e. 3A fuse is not blown);

Class A fire-resistant cable: withstand combustion for at least 90 min under the flame of 950 ℃～ 1000 ℃ and rated voltage without breakdown (i.e. 3A fuse is not blown).

Although the national standard cancels the classification grade, this classification method is still used in key projects.

FAQ

Q:What are your main products?
A:YT MICA is engaged in the R&D, production, sales and service of fire resistant mica materials, high-clean materials, flame-retardant materials and other technologies, providing industry users with solutions based on "fire-resistant, flame-retardant, low-smoke and halogen-free". We provide mica tape, mice sheet, 2D rigid and flexible mica plates, 3D thermal-forming mica plate, 3D CNC machinable mica parts which are applied in various industries such as security cables&wires, EV, Lithium batteries, electric appliance ,.etc.

Q:What about the package of product?

A:1. Wooden pallet with carton.

2. Plastic pallet with carton.

3,Wooden wooden pallet with wooden case.

4. According to customer requirements.

Q:What's the payment term?

A:30%TT advance , 70% payment against documents. T/T at sight, L/C.

Q:If I need sample,what should I do?

A:It's our pleasure to send sample for you. Please send the parameters of technical requirements and testing requirements. YT MICA will proceed sampling as per customer request.

Q:Why is your price a bit higher than other Chinese suppliers?

A:To meet the requirement of different customers and areas, our factory

manufactures various kinds of quality for each item at a wide range of price. We can offer the products of different quality levels depending on customer’s target price and quality requirement.

Q:How can you guarantee the quality of mass production is same with the sample sent to me before?

A: We have strict quality control management system. Proceed Volume production exactly according to the approved sample quality and the technical data sheet requested by customer. We control internally every step of IQC,IPQC,OQC.

Q:How can you deal with quality issues that customer feedback after receiving the goods?

A:1) Customers take photos of unqualified goods and then our sales staff will send them to Engineering Department to verify.

2) Study and analyse the root cause and take corrective actions. Submit 8D report.

System certifications obtained:
ISO9001 Quality Management System Certificate
ISO14001 Environmental Management System Certificate
ISO45001 Certificate of Occupational Health&Safety Management
IATF 16949 Quality Management System certificate
SA8000 Social Responsibility Management System Certificate

Yitian Mica has obtained 5 invention patents, 21 practical patents, 20 software registration rights, and 3 trademarks. More intellectual property rights has been applied for verification.
YTMICA 5 invention patents:
a mica insulation material for battery cells and its processing & application.
a squeeze-resistant fireproof mica tape for power batteries and its processing & application.
high-temperature resistant mica tape & mica thermal insulation parts and their production methods.
a processing method for fire-resistant mica tape.
a fire-resistant insulation tape for optical cables.

Know more about YT Mica at www.ncnc.cn

YT MICA fully implement the ISO 9001-2015 quality system operation,as a stan- dardization of internal management,strengthen the system building an important measure.A strict quality control system has been established,from raw materials, processes, finished products inspection,to ensure that every link in the production process is strictly in accordance with the standards for testing.

YT Mica has equipped with various fire-resistant testing devices and can assist customers in developing fire-resistant cable products according to different standards of various countries, providing one-stop solution service.

We proceed various testings such as Burning Test, Dielectric Test,Oxygen Index Test, Tensile Test, Thickness measurement,Wrapping Trial Test,etc.

Third Party testing Reports Available

Third Party testing Reports Ready Soon

YT MICA He Bei Plan Factory Tour

Our Mission -  Let materials create a safe life

Our Vision -  Committed to becoming a high-quality supplier of global high-end cable and electrical insulation industry

Values -  Rely on the spectrum, work hard, work together, create value, embrace change

Beijing Yitian Mica Technology Co., Ltd. founded in 2003, is a national high-tech enterprise integrating R&D and manufacturing, registered in Zhongguancun Science Park. It is mainly engaged in the R&D, production, sales and service of fire-resistant mica, high cleaning mica materials, fire-retardant materials, and provides industrial users with solutions based on "fire-resistant, fire-retardant, low smoke and zero halogen".

On 2013, YT Mica Stock reform completed, logged in NEEQ ((National Equities Exchange and Quotations) and become a public enterprise in China.

Since its establishment, our company has always adhered to the development strategy of science and technology and specialization, fully focused on public safety, fire prevention and emergency response, and provided overall security solutions for aerospace, petroleum, subway, key projects, national defense construction and other construction industries. After years of development, Reliance has rapidly grown into the largest mica tape enterprise in China, and developed a number of patented products with independent intellectual property rights, And become one of the famous brands in the industry.

Yi Tian Mica strives to become a responsible social enterprise, persisting in and actively participating in quality improvement, energy saving and consumption reduction and other undertakings beneficial to the society and ecological environment. Yi Tian Mica established a win-win partnership, and highlight to maximize the value of employees and shareholders.
