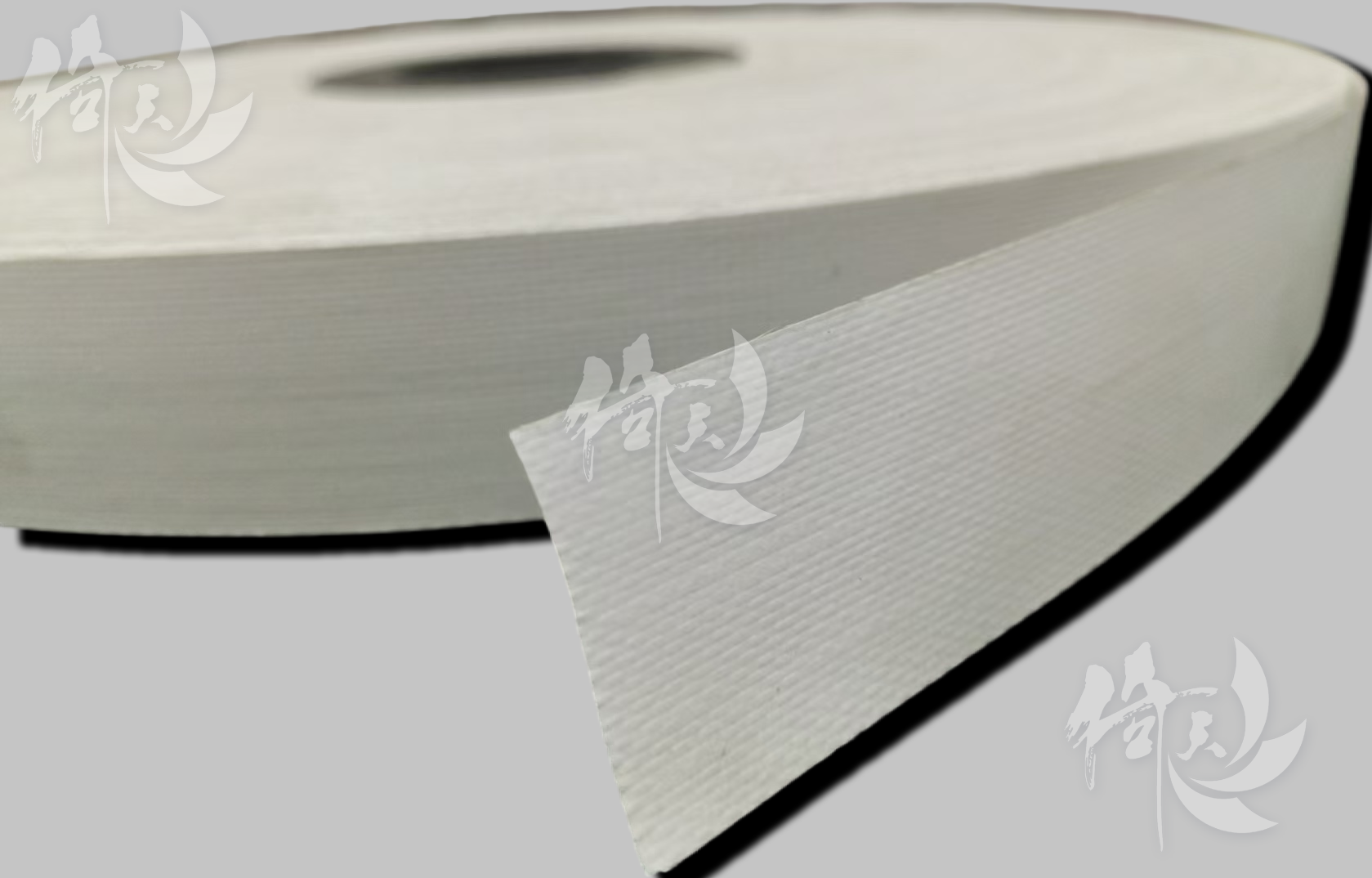

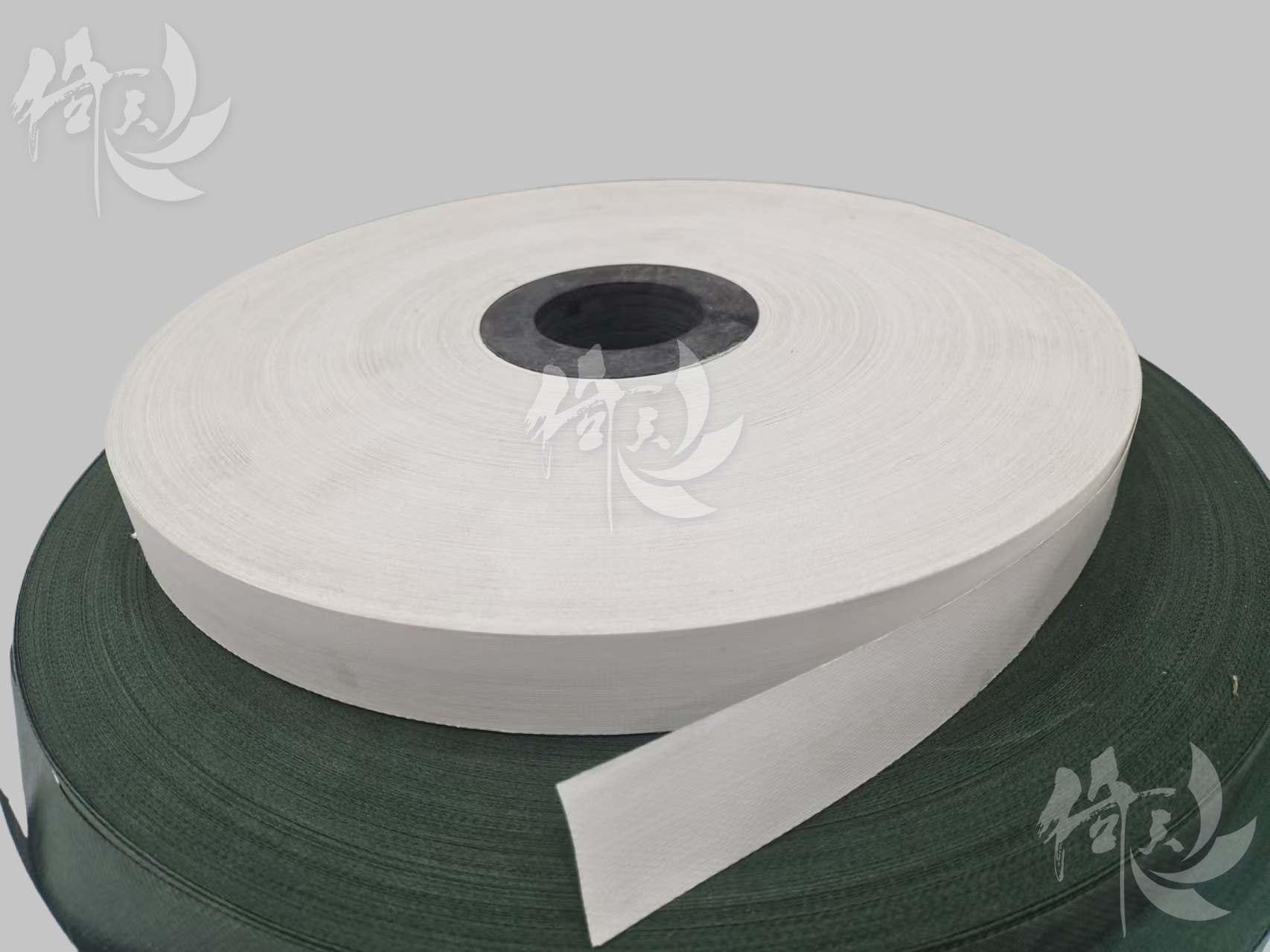

Flame Retardant Tape for Cables / YT Mica Product ID-ZRD
YT Mica Product ID- ZRD
The common features of halogen-free low-smoke flame-retardant tapes
include high temperature resistance, flame resistance,
halogen-free, less smoke, light specific gravity, and high tensile
strength. Stable chemical properties, acid and alkali resistance,
aging resistance; excellent environmental performance, does not
contain toxic and harmful components, and does not produce toxic
gases at high temperatures. When burned by fire, it decomposes into
metal compounds and crystal water, plays a certain role in
adsorbing and settling smoke, and has a good heat absorption
effect.
It can be widely used in halogen-free and low-smoke, fire
insulation (oxygen), flame-retardant cables, mining cables, etc.
Class B1 cables are recommended for use only.
The product is made of glass fiber cloth as reinforcement,
magnesium hydroxide as flame retardant, impregnated with suitable
flame retardant glue and dried in an oven.
| Performance | Data | Unit | Standard Test
|
| Appearance | Supplied in pads, there should be no damage, the edges should be
free of cracks, the surface should be white, and the coating should
be smooth and even. | / | Visual inspection |
| Thickness | 0.15±0.02 | 0.2±0.02 | 0.25±0.02 | mm | Micrometer |
| Width | ±1.0 | ±1.0 | ±1.0 | mm | Vernier Caliper |
| Quantitative | 170±20 | 220±20 | 280±20 | g/㎡ | Accuracy 0.001g balance weighing |
Tensile Strength |
≥440 |
≥440 |
≥440 |
N/25mm |
GB/T 12914-2018 |
| Oxygen Index | ≥55 | % | GB/T 2406.2—2009 |
| Smoke Density | ≤100 | % | GB/T 8323.2—2008 |
| PH value | ≥4.3 | / | GB/T17650.2—2021 |
| Conductivity | ≤10 | uS/mm | GB/T17650.2—2021 |
| Environmental performance | Data | Unit 单位 | Standard Test
|
RoHS | (Cd) | ≤100 | mg/kg | IEC 62321 |
| (Pb) | ≤1000 | mg/kg | IEC 62321 |
| (Hg) | ≤1000 | mg/kg | IEC 62321 |
| (Cr(VI)) | ≤1000 | mg/kg | IEC 62321 |
| (PBBs) | ≤1000 | mg/kg | IEC 62321 |
| (PBDEs) | ≤1000 | mg/kg | IEC 62321 |
| (DBP) | ≤1000 | mg/kg | IEC 62321 |
| (BBP) | ≤1000 | mg/kg | IEC 62321 |
| (DEHP) | ≤1000 | mg/kg | IEC 62321 |
| (DIBP) | ≤1000 | mg/kg | IEC 62321 |
FAQ
What are your main products?
1,YT MICA is engaged in the R&D, production, sales and service
of fire resistant materials and accessory for cables and wires,
high-clean materials, flame-retardant materials and other
technologies, providing industry users with solutions based on
"fire-resistant, flame-retardant, low-smoke and halogen-free". We
provide ire resistant materials and accessory for cables and wires.
2.What about the product quality and which certificate do you have?
We have IATF16949,IS09001,1S014001 and ROHS certificate. We have
strict quality control management system. Proceed Volume production
exactly according to the approved sample quality and the technical
data sheet requested by customer. We control internally every step
of IQC,IPQC,OQC.
3. How long does it take to deliver after order?
For small quantity, we arrange delivery within one week normally
while for big quantity, we will arrange delivery as soon as
possible according to actual situation and customer's requirements.
4. What about your after-sale service?
We fully guarantee our product quality and will provide free
technical guidance on operations.
System certifications obtained:
ISO9001 Quality Management System Certificate
ISO14001 Environmental Management System Certificate
ISO45001 Certificate of Occupational Health&Safety Management
IATF 16949 Quality Management System certificate
SA8000 Social Responsibility Management System Certificate
Yitian Mica has obtained 5 invention patents, 21 practical patents,
20 software registration rights, and 3 trademarks. More
intellectual property rights has been applied for verification.
YTMICA 5 invention patents:
a mica insulation material for battery cells and its processing &
application.
a squeeze-resistant fireproof mica tape for power batteries and its
processing & application.
high-temperature resistant mica tape & mica thermal insulation
parts and their production methods.
a processing method for fire-resistant mica tape.
a fire-resistant insulation tape for optical cables.
Know more about YT Mica at www.ncnc.cn
YT MICA He Bei Plan Factory Tour
