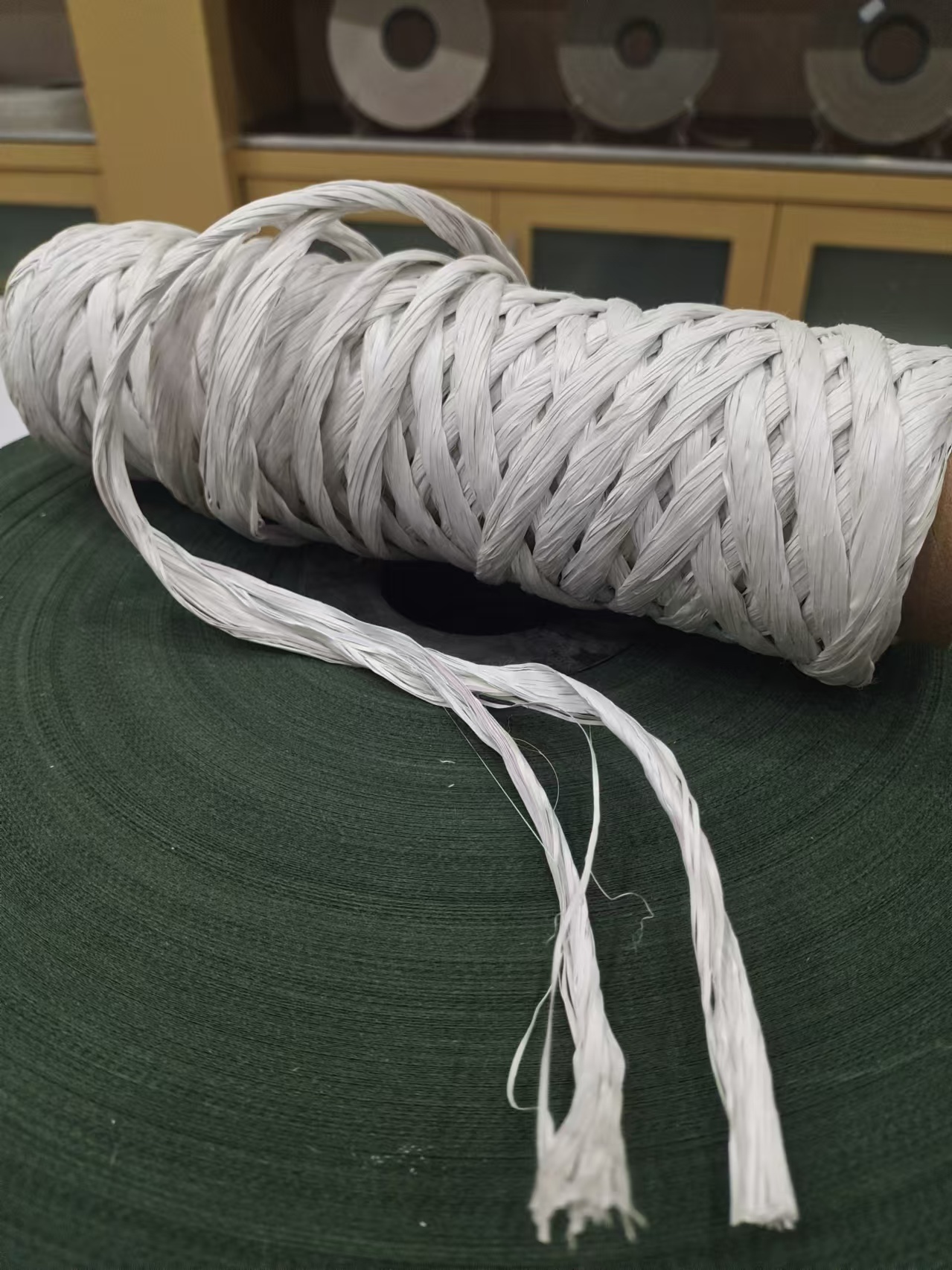

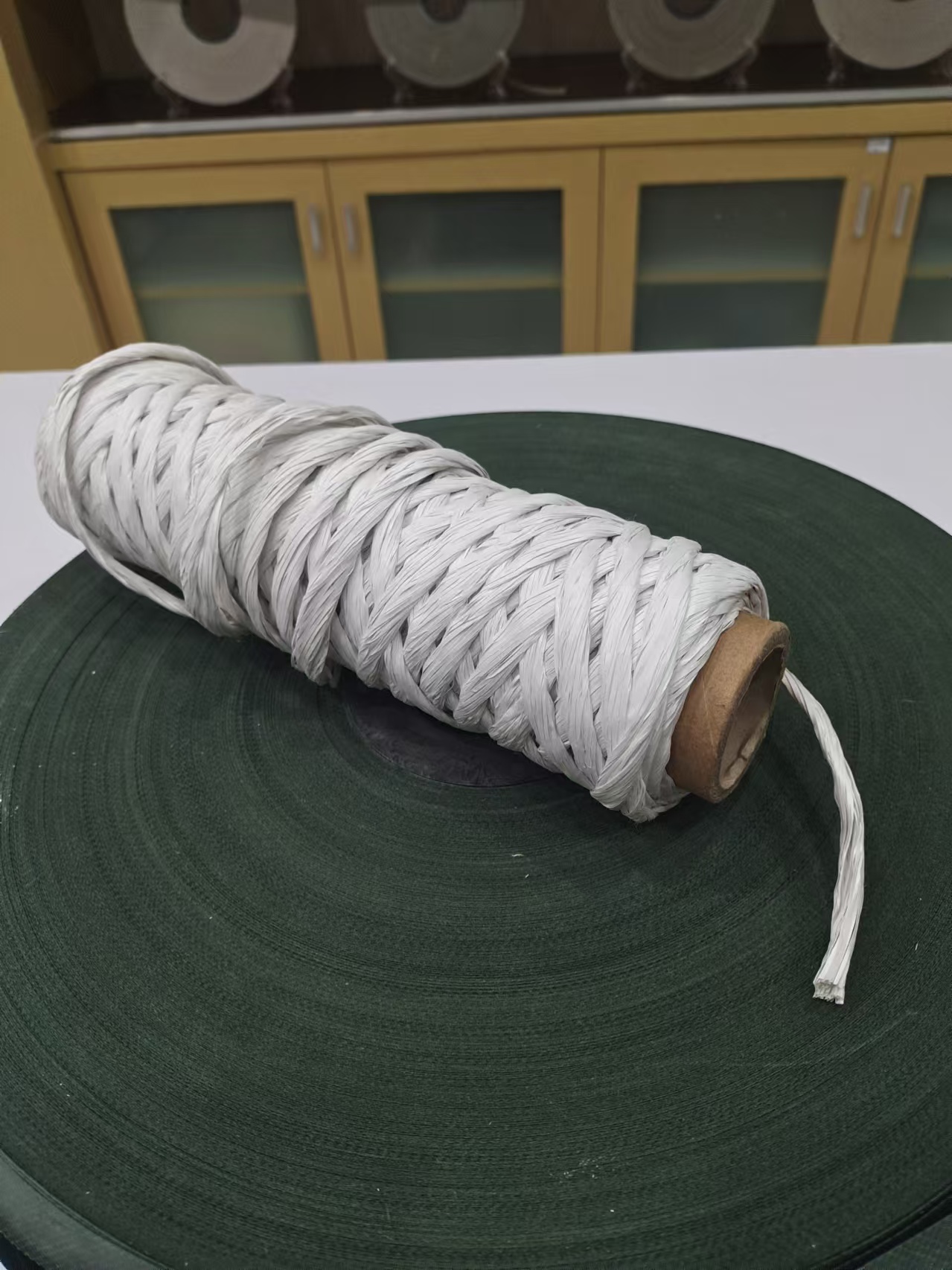

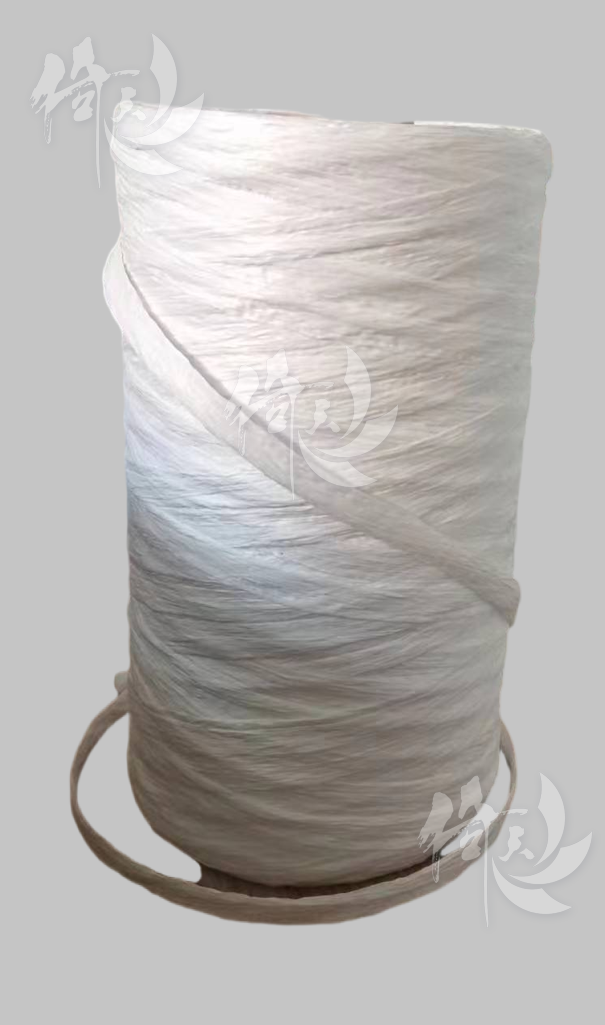

Flame Retardant Filling Rope For Cables And Wires
YT Mica Product ID WLDYZRPPTCS
Flame retardant filling rope is a specialized material designed to
provide insulation and protection for cables and wires,
particularly in applications where fire resistance is crucial.
Here’s an overview of its properties, uses, and considerations:
Properties
- Flame Retardant: Made from materials that resist ignition and limit the spread of
flames, enhancing safety in high-risk environments.
- Thermal Insulation: Offers good thermal insulation properties, helping to protect
cables from heat damage.
- Durability: Typically resistant to chemicals, moisture, and UV light, ensuring
longevity in various conditions.
Uses
- Cable Insulation: Used as a filling material in cable assemblies to provide thermal
and electrical insulation.
- Fire Protection: Ideal for environments where cables may be exposed to heat or
flame, such as in industrial settings, buildings, and
transportation.
- Vibration Dampening: Helps absorb shocks and vibrations, protecting sensitive
electrical components.
Considerations
- Compliance: Ensure that the filling rope meets relevant fire safety standards
and regulations for your specific application.
- Installation: Requires proper installation techniques to maximize effectiveness
and maintain integrity.
- Compatibility: Check for compatibility with other materials in the cable assembly
to avoid adverse reactions.
The common features of halogen-free and low-smoke flame-retardant
filling ropes include the characteristics of being halogen-free,
producing less smoke, light specific gravity, high tensile
strength, and rounded cable filling effect. It is a filling product
with high cost performance.
It can be widely used in non-hygroscopic filling technical
requirements for wires and cables, control cables, cross-linked
cables, high-grade flame-retardant and fire-resistant safety wires
and cables, high and low voltage power cables, etc.
The product is a mesh-shaped filling rope made of drawing-grade
polypropylene raw material and blown by a special machine.
| Data Sheet |
| Outward appearance | There should be no impurities, no pollution, uniform color, and the
color should be white. The mesh filling rope can be easily pulled
into a mesh, and the mesh should be even and there should be no
powder falling off |
| Type | Model | Diameter | Weight | Oxygen Index |
| mm | g/m | % |
The product is a mesh-shaped filling rope made of drawing-grade
polypropylene raw material and blown by a special machine.
single strand | 0.3# | 1.3 |
±0.3 | ≤2.0 |
≥27
Generally considered Oxygen index <22 is a easy flammable material;
Oxygen index between 22 and 27 is a flammable material; oxygen index >27 is a flame-retardant material.
|
| 0.5# | 1.5 | ≤2.2 |
| 1# | 2.0 | ≤2.5 |
| 2# | 2.5 | ≤4.0 |
| 4# | 3.0 | ≤5.0 |
| 6# | 3.5 | ≤6.0 |
| 8# | 4.0 | ≤7.5 |
| 10# | 4.5 | ≤8.5 |
| 12# | 5.0 | ≤10.5 |
| 14# | 5.5 | ≤12.0 |
| 16# | 6.0 | ≤15.0 |
| 18# | 6.2 | ≤16.0 |
| 20# | 7 | ≤19.0 |
| 24# | 7.2 | ≤19.5 |
| 26# | 7.5 | ≤22.0 |
| 30# | 8.0 | ≤24.0 |
Joint stock |
multistrand | Φ9 |
±0.5 | ≤30.0 |
| Φ10 | ≤38.0 |
| Φ11 | ≤45.0 |
| Φ12 | ≤52.0 |
| Φ13 |
±1.0 | ≤59.0 |
| Φ14 | ≤66.0 |
| Φ15 | ≤73.0 |
| Φ16 | ≤81.0 |
| Φ18 | ≤95.0 |
| Environmental performance | Standard | Unit | Standard | Environmental performance |
Halogen Content | (Cd) | ≤100 | PASS | mg/kg | IEC 62321 |
| (Pb) | ≤1000 | PASS | mg/kg | IEC 62321 |
| (Hg) | ≤1000 | PASS | mg/kg | IEC 62321 |
| (Cr(VI)) | ≤1000 | PASS | mg/kg | IEC 62321 |
| (PBBs) | ≤1000 | PASS | mg/kg | IEC 62321 |
FAQ
What are your main products?
1,YT MICA is engaged in the R&D, production, sales and service
of fire resistant materials and accessory for cables and wires,
high-clean materials, flame-retardant materials and other
technologies, providing industry users with solutions based on
"fire-resistant, flame-retardant, low-smoke and halogen-free". We
provide ire resistant materials and accessory for cables and wires.
2.What about the product quality and which certificate do you have?
We have IATF16949,IS09001,1S014001 and ROHS certificate. We have
strict quality control management system. Proceed Volume production
exactly according to the approved sample quality and the technical
data sheet requested by customer. We control internally every step
of IQC,IPQC,OQC.
3. How long does it take to deliver after order?
For small quantity, we arrange delivery within one week normally
while for big quantity, we will arrange delivery as soon as
possible according to actual situation and customer's requirements.
4. What about your after-sale service?
We fully guarantee our product quality and will provide free
technical guidance on operations.
